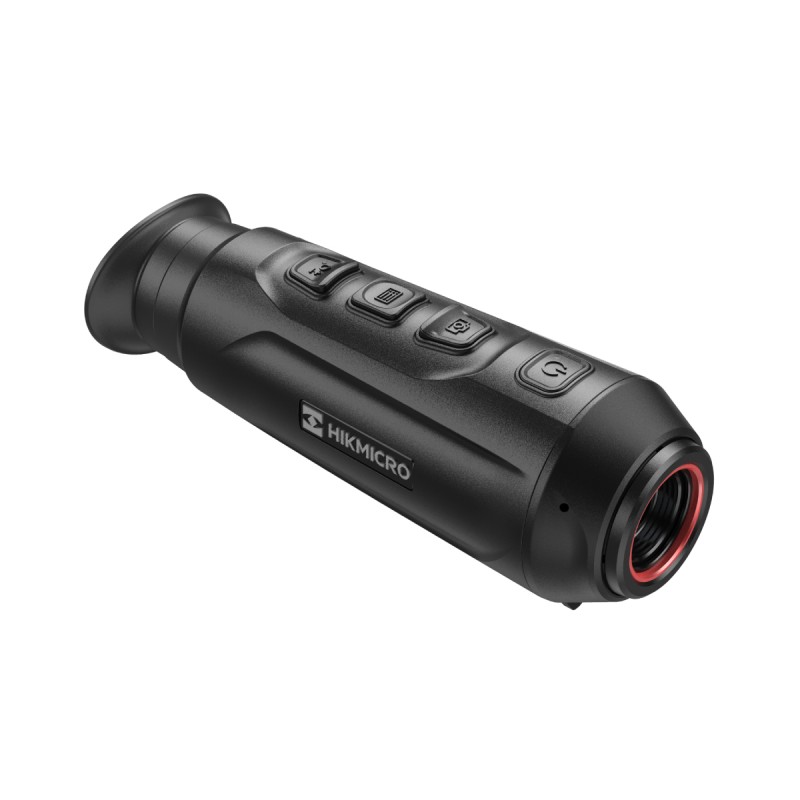

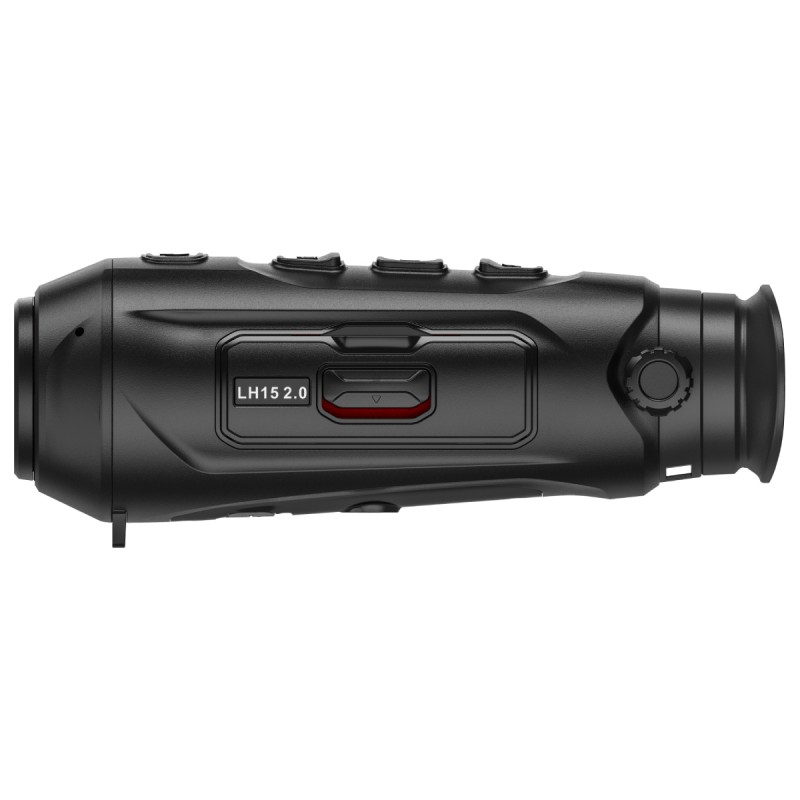

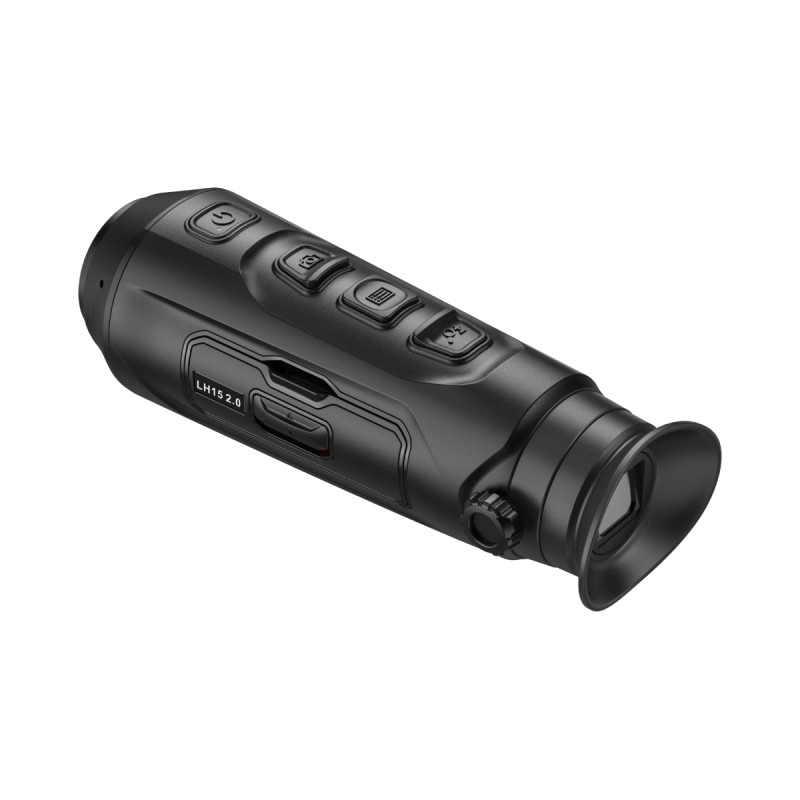

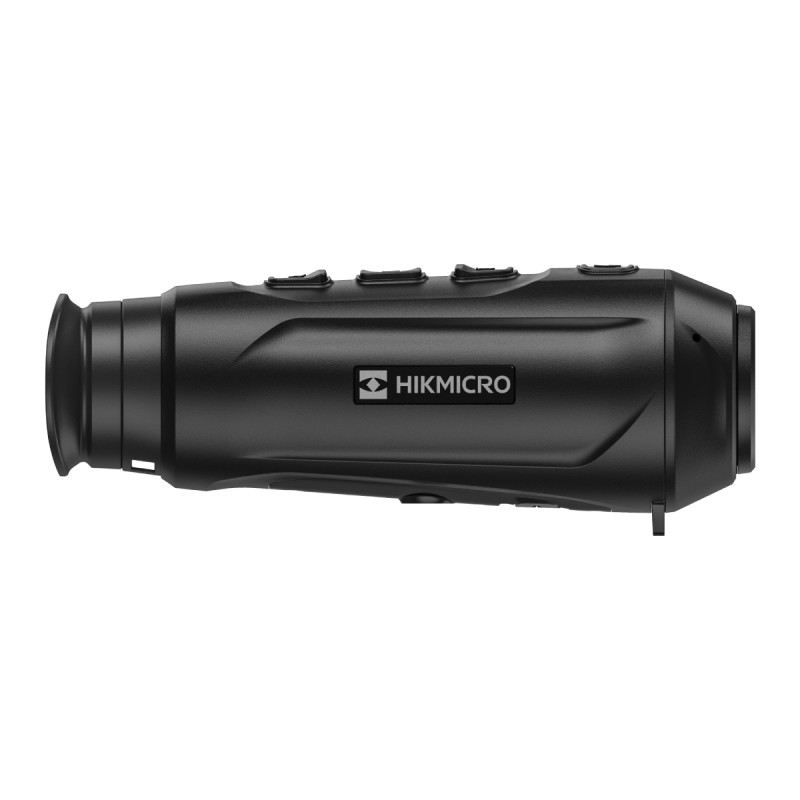

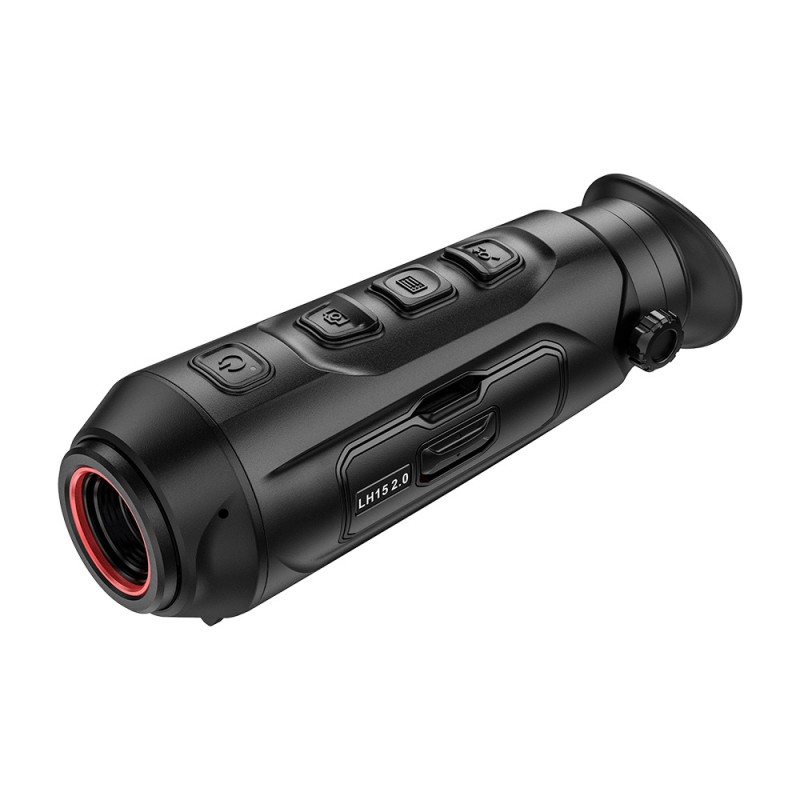

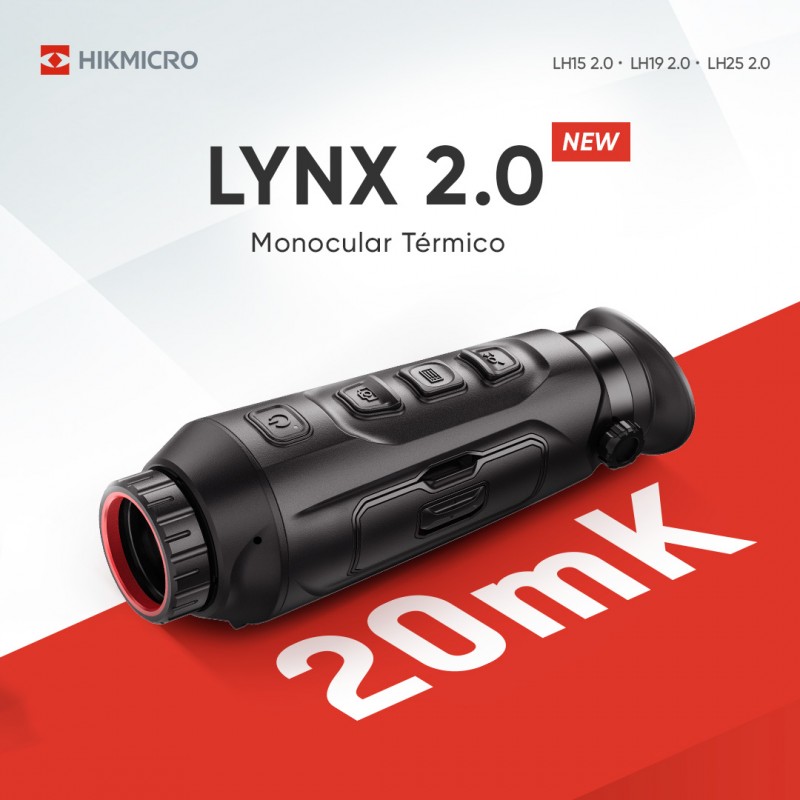

LYNX Pro LH15 2.0 HIKMICRO Thermal Monocular

With an impressive 43-meter field of view, 384 x 288 sensor and 12-micrometer pixel pitch, the Hikmicro Lynx LH15 2.0 thermal monocular is designed to elevate the observation experience with its manual focus function. It also features a thermal sensitivity of NETD < 20mK.

The Hikmicro Lynx Pro thermal monocular's extraordinary detection range of up to 750 meters also makes it the ideal choice for field observation, delivering exceptional performance.

Main Features

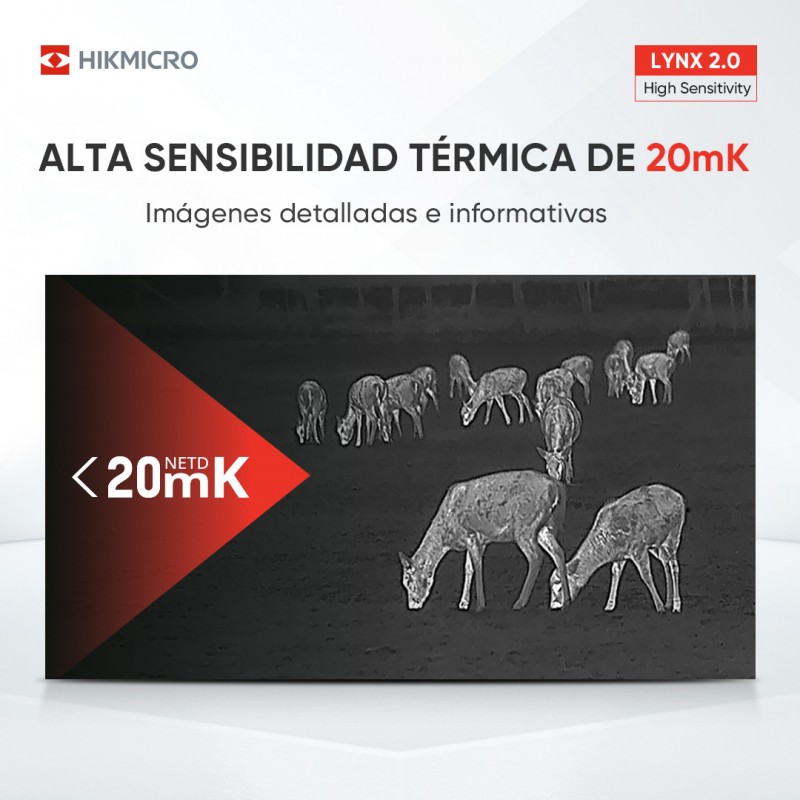

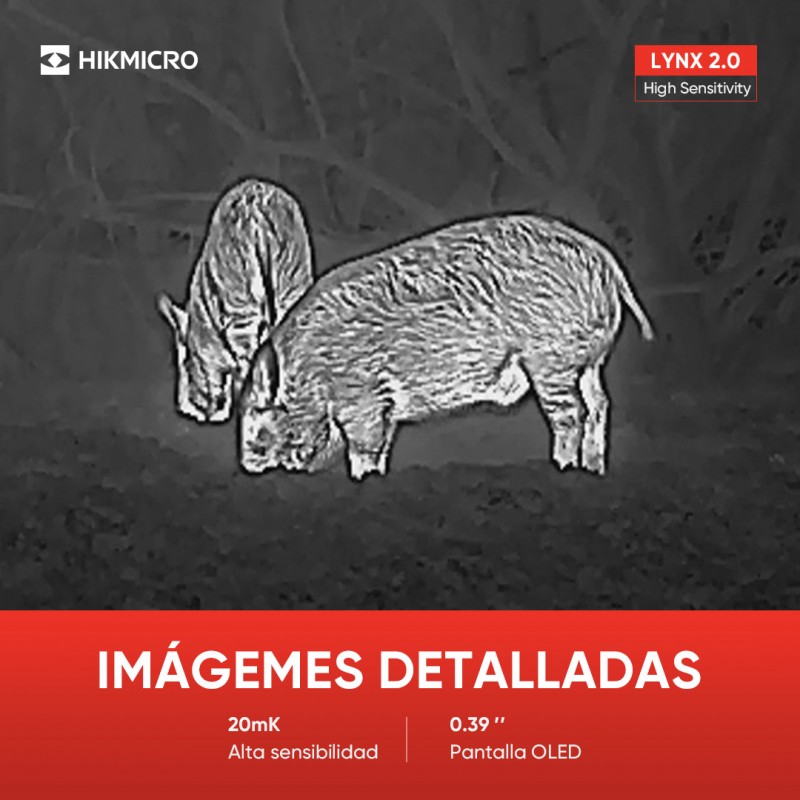

• High sensitivity thermal module NETD < 20 mK (@25°C, F# = 1.0)
• 384 × 288 resolution with 12μm detector
• 0.39-inch OLED display with 1024 × 768 resolution
• Replaceable and rechargeable 18650 lithium-ion battery
• Lightweight at 270g, with a compact and ergonomic design
• Up to 6.5 hours of continuous operation

Specs

Thermal module

• Image Sensor: Uncooled VOx Focal Plane Arrays
• Resolution: 384 × 288
• Frame rate: 50 Hz
• Pixel pitch: 12 μm
• Response waveband: 8 μm to 14 μm
• NETD: Less than 20 mK (@25°C), F# = 1.0
• Lens (focal length): 15mm, f1.0
• Detection range: 750 m
• Min. Focus distance: 1.5 m
• Magnification: 1.4x to 11.2x (8x)

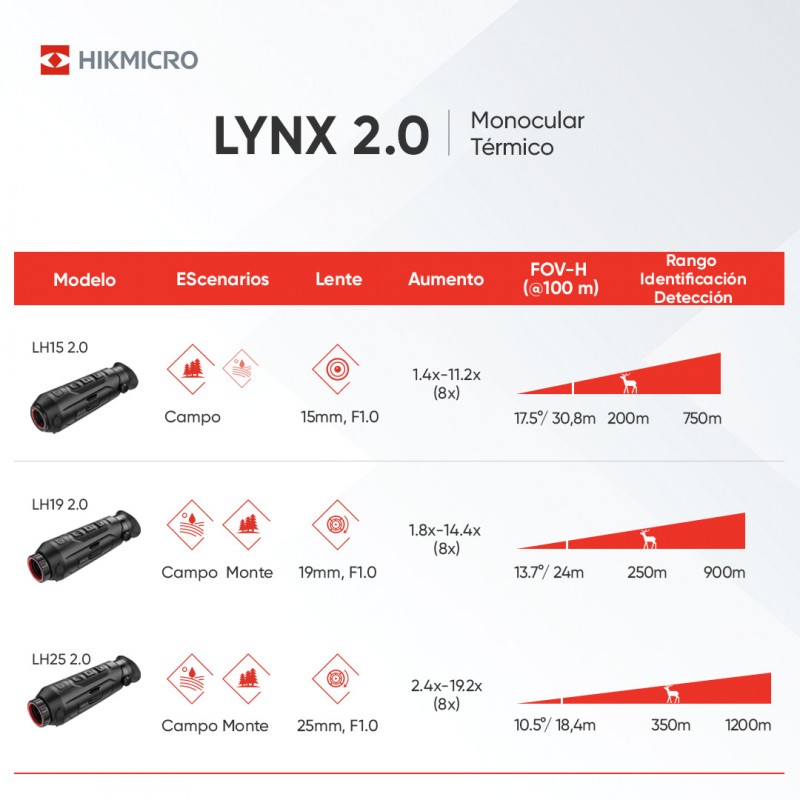

• Field of View (H × V), Degrees/m @100m: 17.5° × 13.1°/30.8 m × 23.0 m

Screenshot

• Display: 1024 × 768, 0.39 inches, OLED
• Palettes: Warm Black, Warm White, Warm Red, Fusion
• FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
• Exit pupil: 6 mm
• Eye relief: 20mm
• Diopters (range): -5 D to +3 D
• Brightness adjustment: Yes
• Tone Adjustment: Cool, Warm
• Contrast Adjustment: Yes System
• Record video: Yes
• Snapshot Capture: Yes
• Audio Recording. Yes
• Standby mode: Yes
• Storage: Built-in EMMC (16GB)
• PIP: Yes
• Hotspot: Yes
• Hot Track: Yes
• Distance measurement: Yes

Feeding

• Battery Type: Replaceable and Rechargeable 18650 Li-ion Battery
• Battery operating time: 6.5 hours continuous operation with CVBS and hotspot function disabled (@25°C)
• Type-C Power Supply: 5VDC, 2A Supports External Power Supply

General

• Protection level: IP67
• Dimensions: 164.0 mm × 56.0 mm × 60.8 mm
• Weight: 272 g without battery
• Operating temperature: -30°C to +55°C

Box contents

• LYNX Pro LH15 2.0.
• USB cable
• Dust cloth
• Protective bag
• Wrist strap
• Charger
• 2 18650 batteries
• User manual

HIKMICRO SIGHT App for IOS and Android

Download the HIKMICRO SIGHT APP to control the monocular from your smartphone or tablet. HIKMICRO SIGHT will allow you to use all the features of the monocular as if you were controlling it from the device itself. You can also download the images and videos stored in the internal memory of the monocular and for all those models that have a distance meter, it can be activated from the HIKMICRO SIGHT APP. Compatible with all models of HIKMICRO thermal monoculars.
