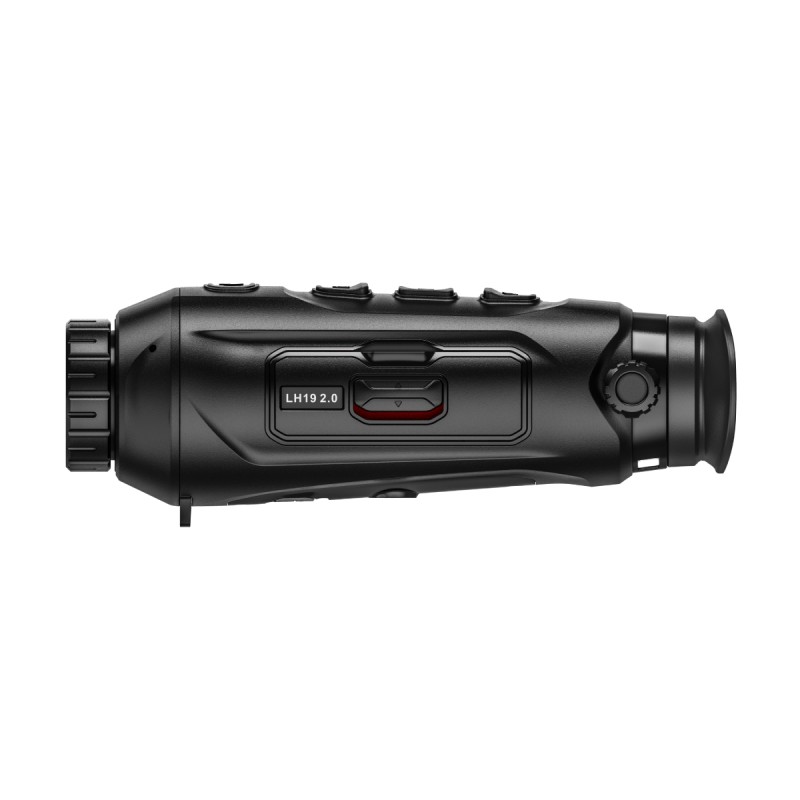

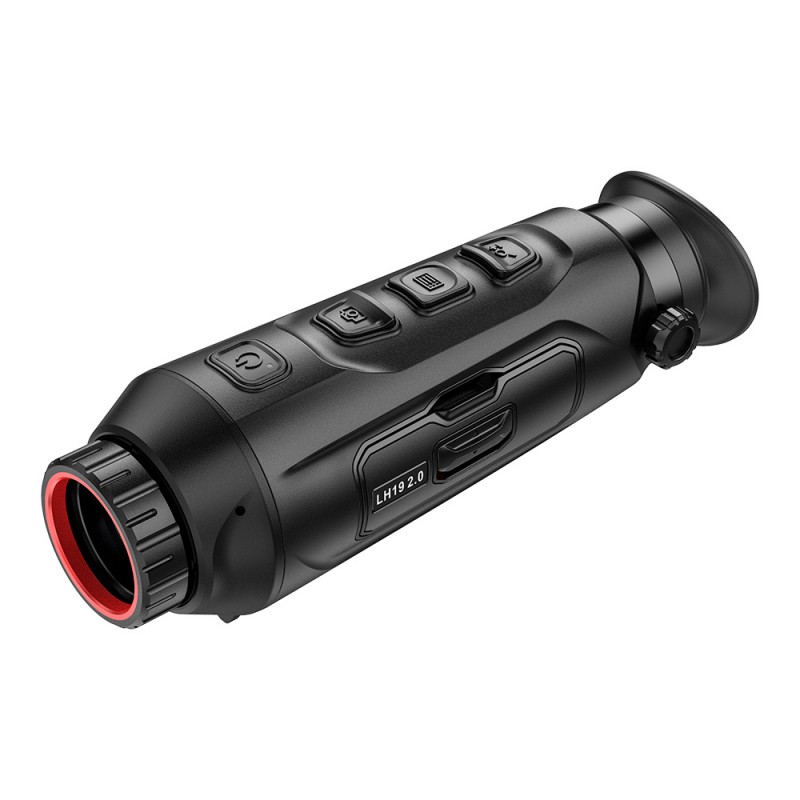

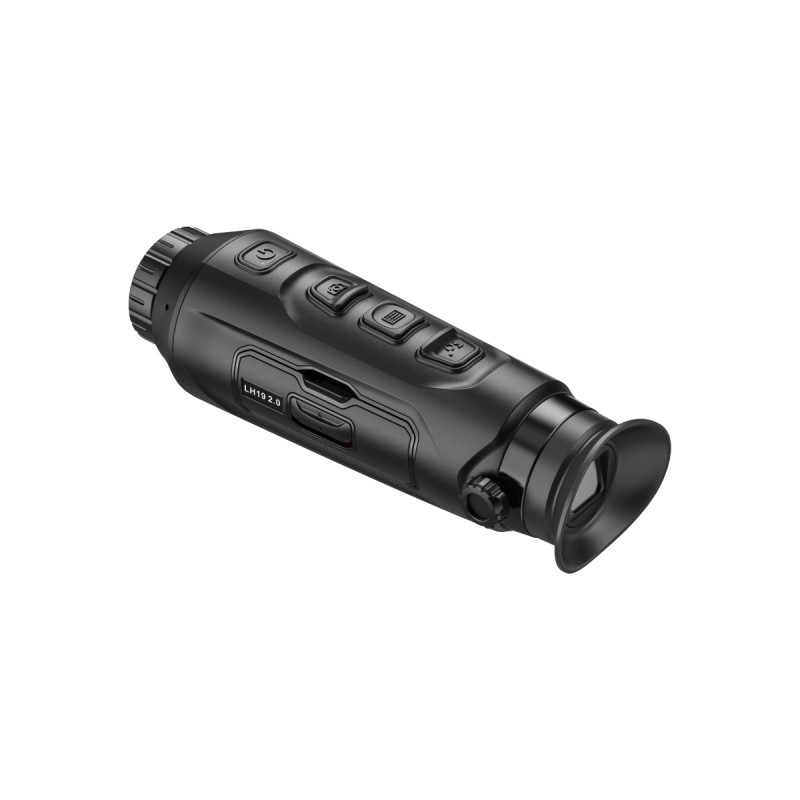

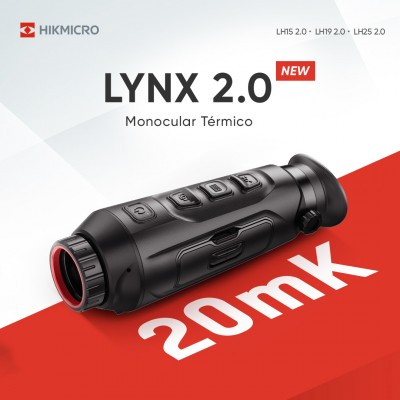

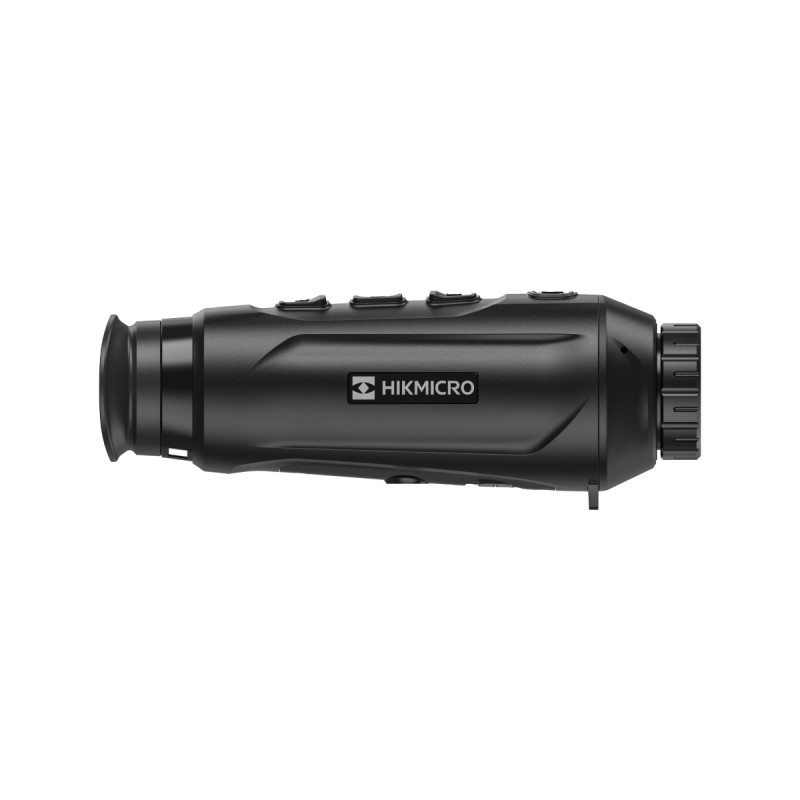

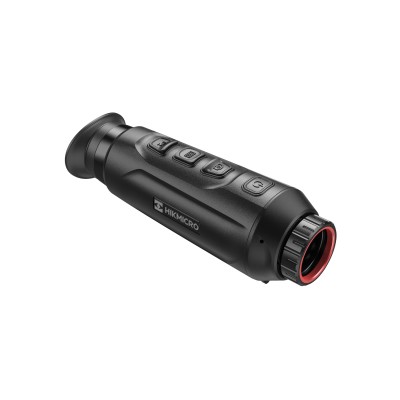

LYNX Pro LH19 2.0 HIKMICRO Thermal Monocular

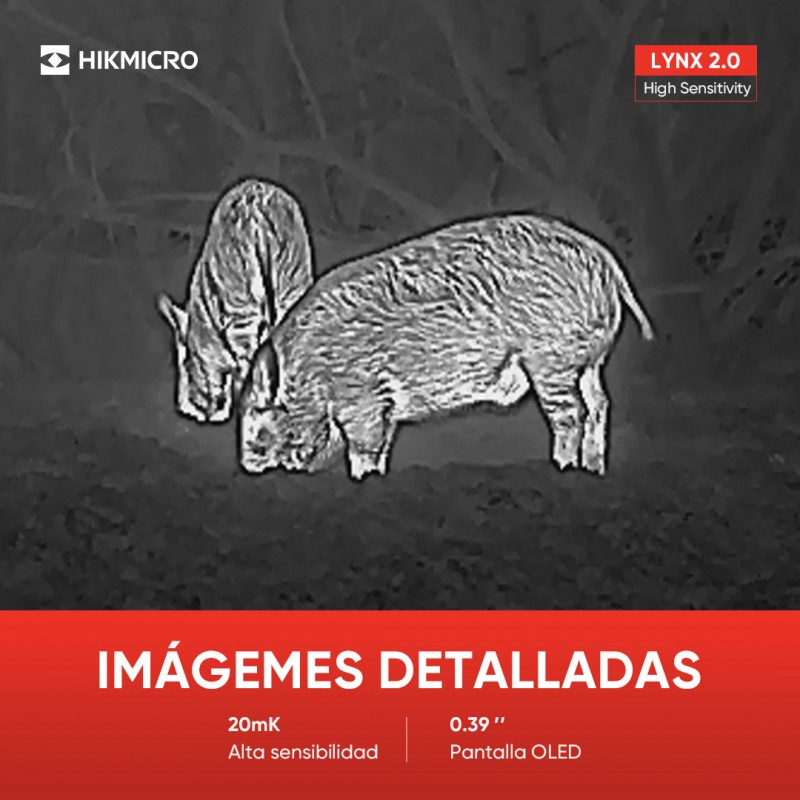

With its high thermal sensitivity of NETD < 20mK and 384×288 VOx sensor, the HIKMCRO LYNX Pro LH19 2.0 thermal monocular ensures you view and capture sharp, detailed images. Experience control with the Hikmicro Lynx Pro monocular’s manual focus feature, allowing you to precisely adjust the image to the exact distance.

Main Features

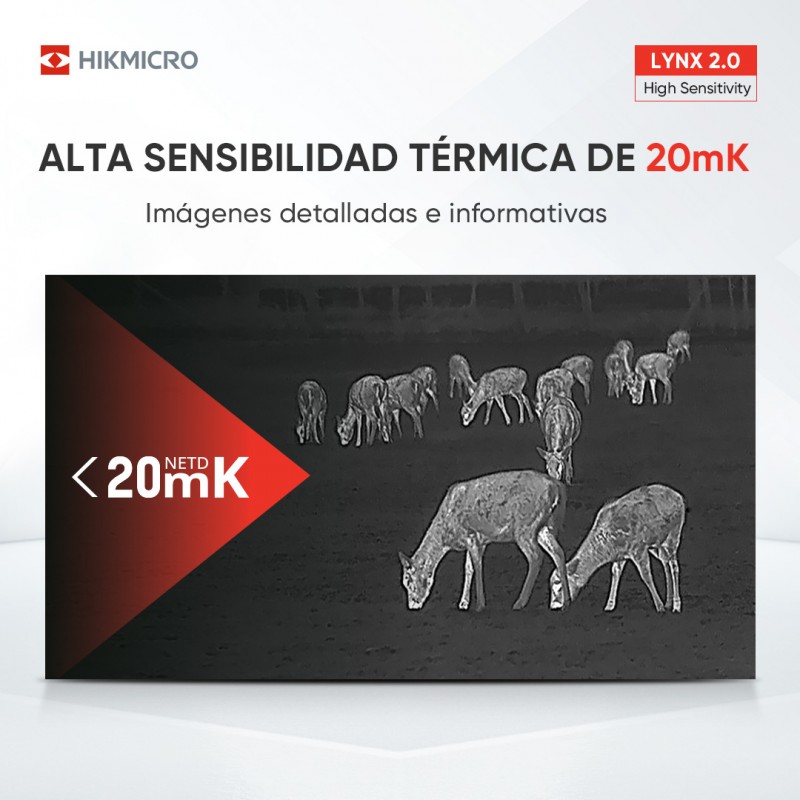

• High sensitivity thermal module NETD < 20 mK (@25°C, F# = 1.0)
• Resolution of 384 × 288 with 12μm detector.
• 0.39-inch OLED display with 1024 × 768 resolution
• Replaceable and rechargeable 18650 lithium-ion battery

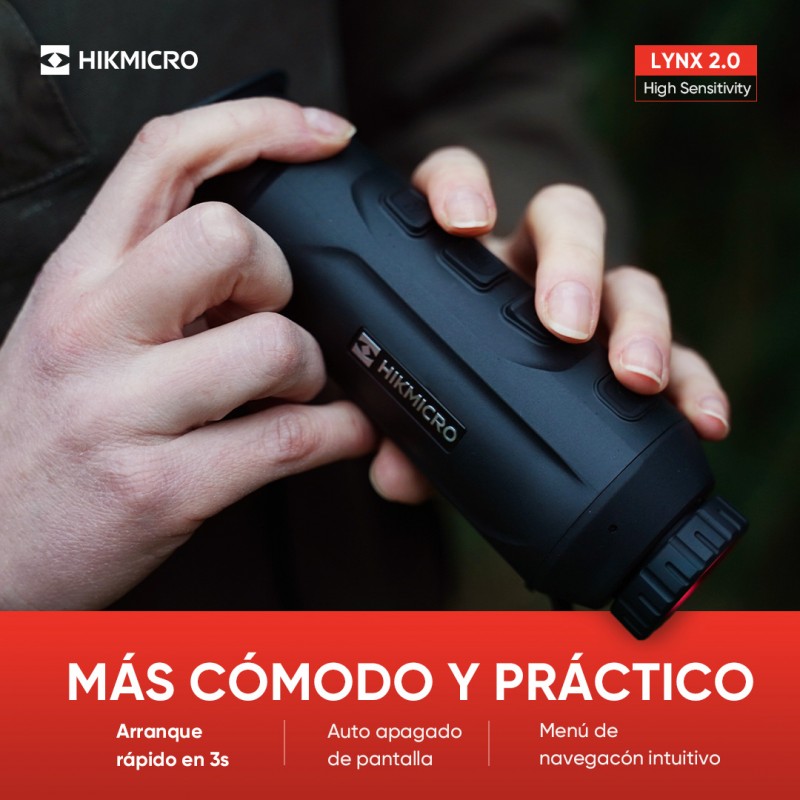

• 280g lightweight, with a compact and ergonomic design
• Up to 6.5 hours of continuous operation

Specs

Thermal module

• Image Sensor: Uncooled VOx Focal Plane Arrays
• Resolution: 384 × 288
• Frame rate: 50 Hz
• Pixel pitch: 12 μm
• Response waveband: 8 μm to 14 μm
• NETD: Less than 20 mK (@25°C), F# = 1.0
• Lens (focal length): 19mm, f1.0

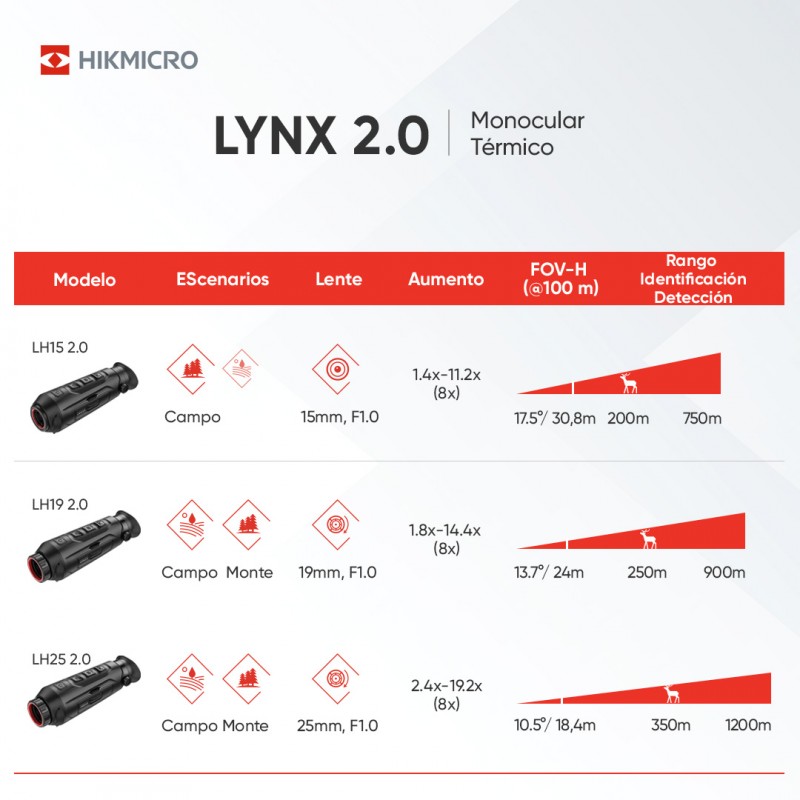

• Detection range: 900 m
• Min. Focus Distance: 1.9 m
• Magnification: 1.8x to 14.4x (8x)
• Field of View (H × V), Degrees/m @100m: 13.7° × 10.3°/24.0 m × 18.0 m

Screenshot

• Display: 1024 × 768, 0.39 inches, OLED
• Palettes: Warm Black, Warm White, Warm Red, Fusion
• FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
• Exit pupil: 6 mm
• Eye relief: 20mm
• Diopters (range): -5 D to +3 D
• Brightness adjustment: Yes
• Tone Adjustment: Cool, Warm
• Contrast Adjustment: Yes System
• Record video: Yes
• Snapshot Capture: Yes
• Audio Recording. Yes
• Standby mode: Yes
• Storage: Built-in EMMC (16GB)
• PIP: Yes
• Hotspot: Yes
• Hot Track: Yes
• Distance measurement: Yes

Feeding

• Battery Type: Replaceable and Rechargeable 18650 Li-ion Battery
• Battery operating time: 6.5 hours continuous operation with CVBS and hotspot function disabled (@25°C)
• Type-C Power Supply: 5VDC, 2A Supports External Power Supply

General

• Protection level: IP67
• Dimensions: 172.5 mm × 56.0 mm × 60.8 mm
• Weight: 282 g without battery
• Operating temperature: -30°C to +55°C

Box contents

• LYNX Pro LH19 2.0.
• USB cable
• Dust cloth
• Protective bag
• Wrist strap
• Charger
• 2 18650 batteries
• User manual

HIKMICRO SIGHT App for IOS and Android

Download the HIKMICRO SIGHT APP to control the monocular from your smartphone or tablet. HIKMICRO SIGHT will allow you to use all the features of the monocular as if you were controlling it from the device itself. You can also download the images and videos stored in the internal memory of the monocular and for all those models that have a distance meter, it can be activated from the HIKMICRO SIGHT APP. Compatible with all models of HIKMICRO thermal monoculars.

HIKMICRO Sight App for Android

HIKMICRO SIGHT App for iOS
