    CNC ME - SPORT Hop-Up Chamber for M4/M16 [Maxx]

CNC ME - SPORT Hop-Up Chamber for M4/M16 [Maxx]

€62.90
Tax included

Tuning parts by Maxx Model Products are dedicated for the most demanding of players and offer an unparalleled thus far on the market quality of finish as well as perfect operation of the HU system in a replica.

Quantity
Add to wishlist
Out-of-Stock

100% secure payments
  Política de segurança

(editar com o módulo Customer Reassurance)

Guarantee safe & secure checkout

CNC Aluminum Hopup Chamber ME Sport (with BB Catching System) unit is precisely made to improve accuracy and ensure consistent air seal for Tokyo Marui (include KRYTAC and KWA) M4/M16 Standard AEG series.
The Hopup Chamber ME unit has a precision rotary dial design for fine hopup adjustments, also re-engineered the hopup levers and concave nubs to work best with R-hop and Standard-Hop to keep the BBs shooting straight and accurate on every single shot.
The Hopup Chamber ME unit is designed to accept the nozzle length from 21.00mm to 21.25mm, and fully compatible with most aftermarket soft and hard rubber bucking without losing FPS or dropping BBs.
The Hopup Chamber ME Housing is equipped with a new CNC Delrin Locking C-Clip design to hold barrel tight without wobbling and twisting, and 3 compression springs on top, at bottom and in center of housing to ensure the hopup unit is exactly centered, straight and air tight at all times when adapted to any V2 gear boxes with 11mm or 11.5mm inner bore.
More than that, the Hopup Chamber ME Sport unit is specially designed with BB Catching System to prevent dropping BBs after removing the magazine.

***The Dual UV LED Boards and Module set and Single UV LED Board w/ Clear Cover and Module set are optional add-ons to glow BBs in the dark. Operating Voltage from 7VDC - 15VDC (2-4 cells LiPo, 6-13 cells NiCad). (Sold separately)
***The Empty Magazine Detection Sensor and Electronic Switch Controller are optional add-ons to stop Motor/HPA firing when the magazine is empty. (Sold separately)
***Test results: FPS might be increased from 10FPS to 30FPS over stock setup. Please check your FPS!

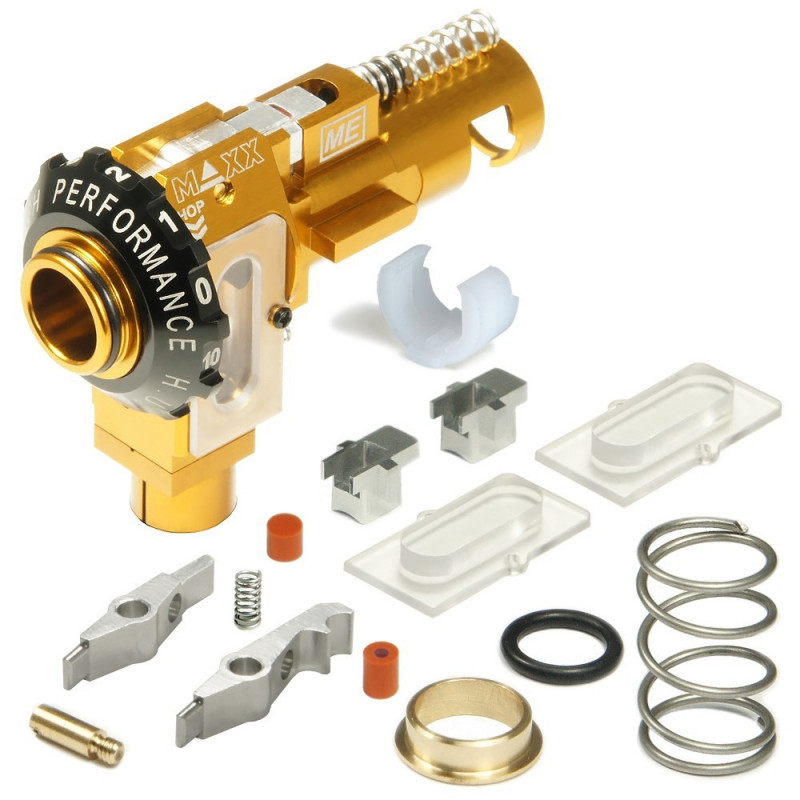

Includes
1 x CNC Aluminum Hopup Chamber ME Sport (with BB Catching System) unit
2 x Strong Clear Vinyl Cover set
1 x CNC Aluminum Standard-Hop Arm
1 x CNC Aluminum R-Hop Arm
1 x Silicone Rubber Standard-Hop Nub Damper
1 x Silicone Rubber R-Hop Nub Damper
1 x CNC Aluminum 4.5mm length Precision R-Hop Concave Nub
1 x CNC Aluminum 6mm length Precision R-Hop Concave Nub
1 x CNC Brass Threaded Slot Pin
1 x CNC Delrin Locking C-Clip
1 x CNC Barrel Brass Spacer
1 x Brass Spacer Holder Oring
3 x Steel Compression Spring

Specification
Overall Length: 51mm
Overall Height: 37.75mm
Hub Outer Diameter (to fit into Gear Box): min 11mm - max 11.5mm
Hub Outer Diameter (to fit into Outer Barrel): min 12mm
Hub Inner Diameter (to fit Nozzle): max 8.3mm
Feeder Outer Diameter (to fit magazine): min 9.25mm
Feeder Length (to fit magazine): max 6.25mm
Material: Aluminum 6061

Features
Machined from a solid aircraft aluminum block with tight tolerances to provide better accuracy, consistency, and durability
Improved accuracy and ensure consistent air seal for Tokyo Marui (include KRYTAC and KWA) M4/M16 Standard AEG series
Precision rotary dial design for fine hopup adjustments
Re-engineered the hopup levers and concave nubs to work best with R-hop and Standard-Hop to keep the BBs shooting straight and accurate on every single shot
Removable Brass Threaded Slot Pin for setup and maintenance
Accepted the nozzle length from 21.00mm to 21.25mm
Fully compatible with most aftermarket soft and hard rubber bucking without losing FPS or dropping BBs
Equipped with a new CNC Delrin Locking C-Clip design to hold barrel tight without wobbling and twisting
Equipped with 3 compression springs on top, at bottom and in center of housing to ensure the hopup unit is exactly centered, straight and air tight
Compatible with any V2 gear boxes with 11mm or 11.5mm bore
Specially designed with BB Catching System to prevent dropping BBs after removing the magazine
The Dual UV LED Boards and Module set and Single UV LED Board w/ Clear Cover and Module set to glow BBs in the dark ready!
The Empty Magazine Detection Sensor to stop Motor/HPA firing ready!

Usage
Compatible with most Tokyo Marui (include KRYTAC and KWA) M4/M16 standard AEG version 2 gear box

AZ33980

Data sheet

Brand
Maxx Model
Compositions
Aluminium
Platform
M4
Compatibility
V2
