Delta Optical launches the Stryker HD 1-10×28 with SDOG-1 reticle, a versatile scope that features the most advanced technology with excellent results in terms of image quality, reliability and functionality under any lighting conditions.
ED glass and bright backlight
The Delta Stryker HD 1-10×28 riflescope is equipped with an extra-low dispersion (ED) lens, which ensures exceptional image clarity even in difficult lighting conditions. The bright backlight allows you to aim even in bright sunlight, ensuring greater accuracy when shooting.
Fine adjustment: 1 click = 0.1 MRAD
Low-profile locking turrets with precise 0.1 MRAD clicks allow you to fine-tune the scope to suit each shooter's needs. This ensures accurate shots at various distances.
Quickly locate nearby targets
The excellent illumination of the scope makes it easy to use as a collimator sight for quickly aiming at nearby targets. The field of view with a 1x magnification makes the reticle work like a collimator sight, but offering more possibilities and greater precision.
SDOG-1 Tactical Reticle
The SDOG-1 reticle, scaled in milliradians, allows for precise target location at long distances. A stadiametric rangefinder also facilitates accurate distance measurements to a target of recognized size.
10x magnification
With 10x magnification, the Delta Stryker HD 1-10×28 scope helps you locate, identify and engage targets at the maximum effective range of most rifles.
Parallax error adjustment
A distinctive feature of this Stryker HD scope is the ability to adjust the parallax error which eliminates the apparent movement of the target being extremely useful, especially when shooting at long distances. It also guarantees a sharp image at any distance.
Compact and durable design

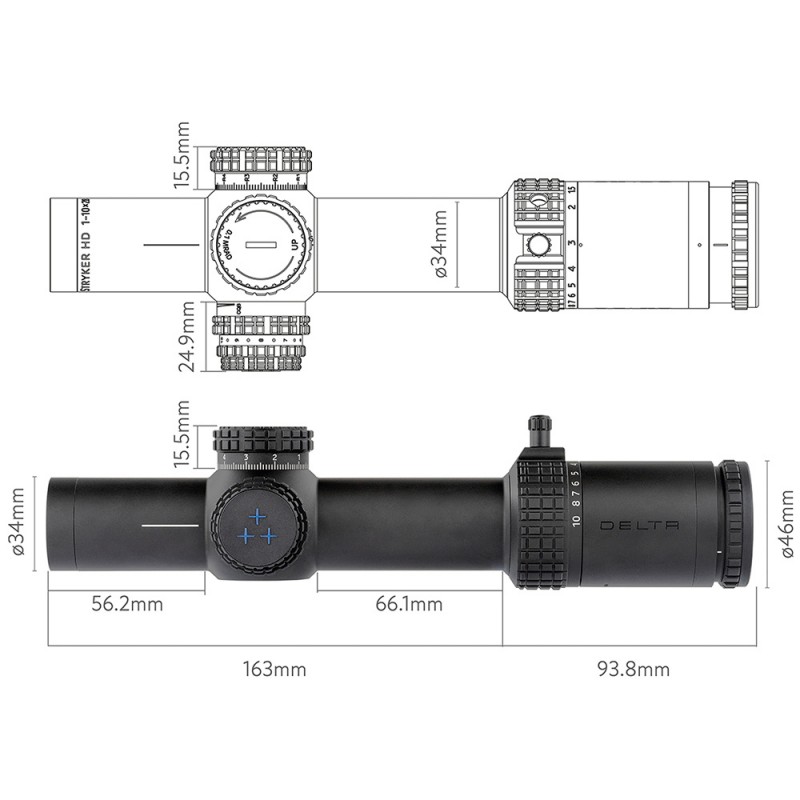

The scope features a 34 mm diameter tube, a length of 250 mm and a weight of 625 grams. It is compact but at the same time extremely durable under all conditions and with the most powerful rifle calibers.
More light
The 28mm diameter lens provides up to 36% more light compared to lenses with a 24mm diameter, resulting in excellent visibility even in low light conditions.
Additional facilities
The Delta Stryker HD 1-10×28 scope package includes a magnification adjustment lever that can be set to two positions allowing you to quickly adjust the magnification. Additionally, markers placed on the tube facilitate quick fixation when mounting the scope on the rifle.
Technical specifications
- Model: Stryker HD 1-10×28
- Reticle Type: SDOG-1
- Correction: 1 click = 0.1 mrad
- Reticle Position: First Focal Plane (FFP)
- Minimum magnification: 1x
- Maximum magnification: 10x
- Illuminated Reticle: Yes
- Diopter adjustment: +2D/-2D
- Traverse Adjustment Range (Height/Drift): 29/23 MRAD
- Lens diameter: 28 mm
- Exit pupil: 8.1 - 28 mm
- Eye relief: 83 - 99 mm
- Parallax adjustment: 10m - ∞
- Linear field of view at 100 m: 38.9 - 3.9 m
- Angular field of view: 22 - 2.23 °
- ZeroLock Feature: No
- Nitrogen filling: Yes
- Tube diameter: 34mm (1 piece)
- Length: 250 millimeters
- Weight: 625 g
- Water resistance: 0.3kg/cm2
- Shock resistance: 6500 J
- Operating temperature: -20/71°C
- Reticle power supply: CR2032 battery
- Warranty: 120 months
Box contents
- Delta Stryker HD 1-10×28 Scope
- Allen key
- Magnification lever

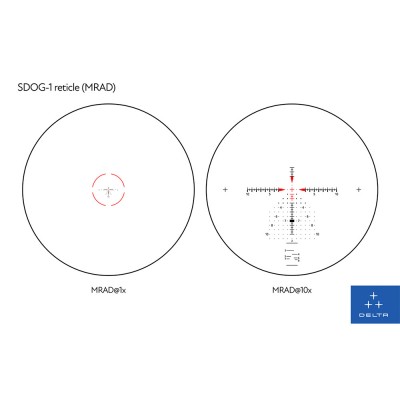

SDOG-1 Reticle
